Abstract base class for EBML master element instances.This class provides the functionality to manage child elements, perform encoding/decoding, and traverse child elements through iterators. It uses CRTP to enable type safety. More...

#include <ebmlMasterElement.h>

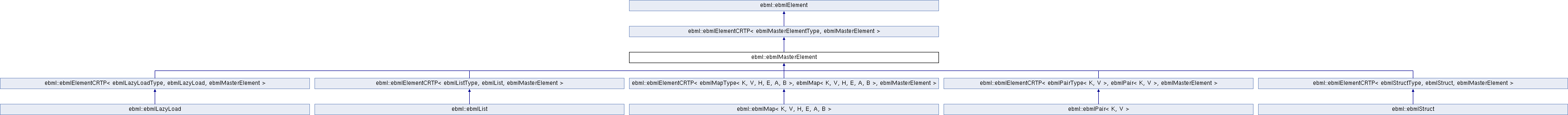

Inheritance diagram for ebml::ebmlMasterElement:

Classes
class	_const_iterator

class	_iterator

class	const_iterator

class	iterator

Public Member Functions
size_t	dataSize () const

sizetree_t	sizetree () const
	Generates the size tree for the element hierarchy. More...

size_t	encode (char *, const sizetree_t &) const
	Encodes the element using a precomputed size tree. More...

iterator	begin ()

iterator	end ()

const_iterator	cbegin () const

const_iterator	cend () const

Element Encoding Overloads
Provides a set of overloaded methods for encoding an EBML master element. The default implementations of `ebml::ebmlElement::encode()` functions makes a call to the `dataSize()` function, determining the entire size of the element without any information on the size of its descendants. This results in redundant calls to `dataSize()` on each of its descendants, with greater redundancy at higher depths. This implementation instead computes a `sizetree_t` containing size information for all the master element's descendants, thereby mitigating the redundancy.
size_t	encode (char *) const

std::string	encode () const

size_t	encode (ioBase &) const

size_t	encode (ioBase &, off_t) const

Public Member Functions inherited from ebml::ebmlElementCRTP< ebmlMasterElementType, ebmlMasterElement >
	ebmlElementCRTP (const ebmlMasterElementType *cls, Args &&... args)

const ebmlMasterElementType &	cls () const

ebml::ptr< ebmlMasterElement >	sp ()

ebml::ptr< const ebmlMasterElement >	sp () const

ebml::ptr< ebmlElement >	sp ()
	Returns a shared pointer to the element instance. More...

ebml::ptr< const ebmlElement >	sp () const
	Returns a shared pointer to a const element. More...

ebml::ptr< T >	sp ()

ebml::ptr< T >	sp () const

ebml::wptr< ebmlMasterElement >	wp ()

ebml::wptr< const ebmlMasterElement >	wp () const

ebml::wptr< ebmlElement >	wp ()

ebml::wptr< const ebmlElement >	wp () const

ebml::wptr< T >	wp ()

ebml::wptr< T >	wp () const

ebml::ptr< ebmlMasterElement >	clone () const

Public Member Functions inherited from ebml::ebmlElement
virtual	~ebmlElement ()

ebmlID_t	ebmlID () const
	Retrieve the EBML ID of the element. More...

template<typename T = ebmlElement>
T &	as ()
	Dynamically cast the element to the requested type. More...

template<typename T = ebmlElement>
T &	as () const
	Const version of the dynamic cast. More...

ebml::ptr< ebmlElement >	sp ()
	Returns a shared pointer to the element instance. More...

ebml::ptr< const ebmlElement >	sp () const
	Returns a shared pointer to a const element. More...

template<typename T >
ebml::ptr< T >	sp ()

template<typename T >
ebml::ptr< T >	sp () const

ebml::wptr< ebmlElement >	wp ()

ebml::wptr< const ebmlElement >	wp () const

template<typename T >
ebml::wptr< T >	wp ()

template<typename T >
ebml::wptr< T >	wp () const

bool	parent_is_const () const
	Check if the element's parent is a const object. More...

ebml::ptr< ebmlMasterElement >	parent () const
	Retrieve the parent of this element. More...

ebml::ptr< const ebmlMasterElement >	c_parent () const
	Retrieve a const shared pointer to the parent element. More...

ebmlElement_sp	root () const

c_ebmlElement_sp	c_root () const

ebmlDocument_sp	document () const

bool	hasParent () const

unsigned char	headSize () const

unsigned char	headSize (size_t) const

unsigned char	sizeWidth () const

unsigned char	sizeWidth (size_t) const

size_t	outerSize () const

size_t	outerSize (size_t) const

off_t	offsetInParent () const

off_t	offsetInFile () const

off_t	dataOffsetInParent () const

off_t	dataOffsetInFile () const

ebml::ptr< ebmlElement >	clone () const

virtual std::wstring	minirepr () const =0

virtual std::wstring	repr () const

seekData_t *	makeSeekData ()

seekData_t *	makeSeekData () const

std::string	encode () const
	Encodes the element and returns it as a `std::string`. More...

size_t	encode (char *) const
	Encodes the element into a pre-allocated buffer. More...

size_t	encode (ioBase &) const
	Encodes the element and writes it to a generic I/O stream. More...

size_t	encode (ioBase &, off_t) const
	Encodes the element and writes it to a specific offset in a stream. More...

size_t	encode (char *, size_t) const
	Encodes the element using a pre-computed size. More...

Protected Member Functions
	ebmlMasterElement (const ebmlMasterElementType *)

void	_init (const parseString &)
	Initializes the element from a parsed EBML string. More...

void	_init (const parseFile &)
	Initializes the element from parsed file data. More...

void	_cinit (const parseString &)
	Const initialization from a parsed EBML string. More...

void	_cinit (const parseFile &)
	Const initialization from parsed file data. More...

ebmlElement *	_decodeChild (const parseString &) const
	Decodes a child element from a parsed string. More...

ebmlElement *	_decodeChild (const parseFile &) const
	Decodes a child element from parsed file data. More...

ebmlElement *	_cdecodeChild (const parseString &) const
	Const version: Decodes a child element from a parsed string. More...

ebmlElement *	_cdecodeChild (const parseFile &) const
	Const version: Decodes a child element from parsed file data. More...

size_t	_encode (char *) const

size_t	_encode (char *, const sizetree_t &) const
	Encodes the element using a precomputed size tree. More...

virtual void	_clear ()
	Clears all child elements. More...

virtual void	_decodeChildren (parseString::iterator &)
	Decodes child elements from a parseString iterator. More...

virtual void	_cdecodeChildren (parseString::iterator &)
	Const version of _decodeChildren. More...

virtual void	_scanChildren (parseFile::iterator &)
	Scans for child elements from a parseFile iterator. More...

virtual void	_cscanChildren (parseFile::iterator &)
	Scans for child elements from a parseFile iterator. (const version) More...

virtual void	_handleParseFile (const parseFile &)
	Handles the parsing of seek data for a child element. More...

virtual void	_chandleParseFile (const parseFile &)
	Handles the parsing of seek data for a child element. (const version) More...

virtual void	_addChild (const ebmlElement_sp &)=0
	Attaches a child element (rvalue version). More...

virtual void	_addChild (ebmlElement_sp &&)=0
	Attaches a child element (move version). More...

void	_attachChild (const ebmlElement_sp &child, bool weak=true) const
	Attaches a child element to the master element. More...

void	_detachChild (const ebmlElement_sp &child) const
	Detaches a child element. More...

void	_attachChildren (const ebmlElement_l &elems, bool weak=true) const
	Const version of _attachChildren. More...

void	_detachChildren (const ebmlElement_l &elems) const
	Detaches multiple child elements. More...

virtual ebmlMasterElement::_iterator *	_begin ()=0

virtual ebmlMasterElement::_iterator *	_end ()=0

virtual ebmlMasterElement::_const_iterator *	_cbegin () const =0

virtual ebmlMasterElement::_const_iterator *	_cend () const =0

void	_clonedata (const ebmlElement *)

Protected Member Functions inherited from ebml::ebmlElementCRTP< ebmlMasterElementType, ebmlMasterElement >
ebmlElement *	_clone () const

Protected Member Functions inherited from ebml::ebmlElement
	ebmlElement (const ebmlElementType *)
	Protected constructor. More...

void	_validate ()

void	_setParent (const ebml::ptr< ebmlMasterElement > &parent, bool weak=true)

void	_setParent (const ebml::ptr< const ebmlMasterElement > &parent, bool weak=true)

void	_setParent (ebml::ptr< ebmlMasterElement > &&parent, bool weak=true)

void	_setParent (ebml::ptr< const ebmlMasterElement > &&parent, bool weak=true)

void	_setParent (ebmlMasterElement &parent, bool weak=true)

void	_setParent (const ebmlMasterElement &parent, bool weak=true)

void	_detach ()

size_t	_encode_head (char *, size_t) const

Static Protected Member Functions
static iterator	make_iter (_iterator *)

static const_iterator	make_iter (_const_iterator *)

Protected Attributes
occur_d	ebmlIDCount

Protected Attributes inherited from ebml::ebmlElement
const ebmlElementType *	_cls
	Pointer to the companion element type (an ebmlElementClass subclass). More...

wptr< ebmlElement >	_self
	Custom weak pointer to self (used for shared-from-this semantics). More...

ebmlDocument_wp	_document

vintWidth_t	_sizeWidth = 0

off_t	_offsetInParent = -1

Friends
class	ebmlMasterElementType

class	std::shared_ptr< ebmlMasterElement::_iterator >

class	std::shared_ptr< ebmlMasterElement::_const_iterator >

template<typename T >
class	childSlot_t

std::shared_ptr< ebmlMasterElement::_iterator >	std::make_shared ()

std::shared_ptr< ebmlMasterElement::_const_iterator >	std::make_shared ()

Additional Inherited Members
Public Types inherited from ebml::ebmlElementCRTP< ebmlMasterElementType, ebmlMasterElement >
using	ebmltype = ebmlMasterElementType

Detailed Description

Abstract base class for EBML master element instances.

This class provides the functionality to manage child elements, perform encoding/decoding, and traverse child elements through iterators. It uses CRTP to enable type safety.

See also: ebml::ebmlMasterElementType

Constructor & Destructor Documentation

◆ ebmlMasterElement()

ebml::ebmlMasterElement::ebmlMasterElement ( const ebmlMasterElementType * cls )

protected

Member Function Documentation

◆ _addChild() [1/2]

virtual void ebml::ebmlMasterElement::_addChild ( const ebmlElement_sp & )

protectedpure virtual

Attaches a child element (rvalue version).

Implements the mechanism for attaching a child element to the parent element.

Parameters

child Shared pointer to the child element.

Implemented in ebml::ebmlStruct, ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, and ebml::ebmlList.

◆ _addChild() [2/2]

virtual void ebml::ebmlMasterElement::_addChild ( ebmlElement_sp && )

protectedpure virtual

Attaches a child element (move version).

Implements the mechanism for moving a child element to the parent element.

Parameters

child Rvalue reference to a shared pointer for the child element.

Implemented in ebml::ebmlStruct, ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, and ebml::ebmlList.

◆ _attachChild()

void ebml::ebmlMasterElement::_attachChild	(	const ebmlElement_sp &	child,
		bool	weak = `true`
	)		const

protected

Attaches a child element to the master element.

Manages the parent-child relationship by attaching the provided child element, with an option for a weak reference.

Parameters

child	Shared pointer to the child element.
weak	If true, attaches the child as a weak reference.

◆ _attachChildren()

void ebml::ebmlMasterElement::_attachChildren	(	const ebmlElement_l &	elems,
		bool	weak = `true`
	)		const

protected

Const version of _attachChildren.

Attaches multiple child elements in a const context.

Parameters

elems	List of child elements.
weak	If true, attaches children as weak references.

◆ _begin()

virtual ebmlMasterElement::_iterator* ebml::ebmlMasterElement::_begin ( )

protectedpure virtual

Implemented in ebml::ebmlStruct, ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, and ebml::ebmlList.

◆ _cbegin()

virtual ebmlMasterElement::_const_iterator* ebml::ebmlMasterElement::_cbegin ( ) const

protectedpure virtual

Implemented in ebml::ebmlStruct, ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, and ebml::ebmlList.

◆ _cdecodeChild() [1/2]

ebmlElement * ebml::ebmlMasterElement::_cdecodeChild ( const parseString & parsed ) const

inlineprotected

Const version: Decodes a child element from a parsed string.

Parameters

parsed The parsed EBML string.

Returns: A pointer to the decoded EBML element.

◆ _cdecodeChild() [2/2]

ebmlElement * ebml::ebmlMasterElement::_cdecodeChild ( const parseFile & parsed ) const

inlineprotected

Const version: Decodes a child element from parsed file data.

Parameters

parsed The parsed file data.

Returns: A pointer to the decoded EBML element.

◆ _cdecodeChildren()

void ebml::ebmlMasterElement::_cdecodeChildren ( parseString::iterator & iter )

protectedvirtual

Const version of _decodeChildren.

Default implementation iterates through the given parseString iterator to decode and attach child elements in decoding to a const ebml::ebmlMasterElement instance.

Parameters

iter	Iterator over the parseString.

◆ _cend()

virtual ebmlMasterElement::_const_iterator* ebml::ebmlMasterElement::_cend ( ) const

protectedpure virtual

Implemented in ebml::ebmlStruct, ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, and ebml::ebmlList.

◆ _chandleParseFile()

void ebml::ebmlMasterElement::_chandleParseFile ( const parseFile & parsed )

protectedvirtual

Handles the parsing of seek data for a child element. (const version)

Processes the parsed file data corresponding to a child element. Default implementation decodes child and attaches it through _addChild.

Parameters

parsed Parsed file data for a child element.

◆ _cinit() [1/2]

void ebml::ebmlMasterElement::_cinit ( const parseString & parsed )

protected

Const initialization from a parsed EBML string.

Parameters

parsed The parsed EBML string.

◆ _cinit() [2/2]

void ebml::ebmlMasterElement::_cinit ( const parseFile & parsed )

protected

Const initialization from parsed file data.

Parameters

parsed The parsed file data.

◆ _clear()

void ebml::ebmlMasterElement::_clear ( )

protectedvirtual

Clears all child elements.

Removes all currently attached child elements from the master element.

Reimplemented in ebml::ebmlStruct, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, and ebml::ebmlList.

◆ _clonedata()

void ebml::ebmlMasterElement::_clonedata ( const ebmlElement * elem )

protected

◆ _cscanChildren()

void ebml::ebmlMasterElement::_cscanChildren ( parseFile::iterator & iter )

protectedvirtual

Scans for child elements from a parseFile iterator. (const version)

Default implementation iterates over the ebml::parseFile::iterator and passes each dereferenced ebml::parseFile to _chandleParseFile in decoding to a const ebml::ebmlMasterElement instance.

Parameters

iter	Iterator over the parseFile.

◆ _decodeChild() [1/2]

ebmlElement * ebml::ebmlMasterElement::_decodeChild ( const parseString & parsed ) const

inlineprotected

Decodes a child element from a parsed string.

Parameters

parsed The parsed EBML string.

Returns: A pointer to the decoded EBML element.

◆ _decodeChild() [2/2]

ebmlElement * ebml::ebmlMasterElement::_decodeChild ( const parseFile & parsed ) const

inlineprotected

Decodes a child element from parsed file data.

Parameters

parsed The parsed file data.

Returns: A pointer to the decoded EBML element.

◆ _decodeChildren()

void ebml::ebmlMasterElement::_decodeChildren ( parseString::iterator & iter )

protectedvirtual

Decodes child elements from a parseString iterator.

Default implementation terates through the given parseString iterator to decode and attach child elements.

Parameters

iter	Iterator over the parseString.

◆ _detachChild()

void ebml::ebmlMasterElement::_detachChild ( const ebmlElement_sp & child ) const

protected

Detaches a child element.

Removes the association between the master element and the specified child element.

Parameters

child Shared pointer to the child element to detach.

◆ _detachChildren()

void ebml::ebmlMasterElement::_detachChildren ( const ebmlElement_l & elems ) const

protected

Detaches multiple child elements.

Iterates through the provided list and detaches each child element from the master element.

Parameters

elems List of child elements to detach.

◆ _encode() [1/2]

size_t ebml::ebmlMasterElement::_encode ( char * dest ) const

protectedvirtual

Implements ebml::ebmlElement.

◆ _encode() [2/2]

size_t ebml::ebmlMasterElement::_encode	(	char *	dest,
		const sizetree_t &	_sizetree
	)		const

protected

Encodes the element using a precomputed size tree.

Parameters

dest	Pointer to the destination buffer.
_sizetree	A precomputed sizetree_t for the element.

Returns: The number of bytes encoded.

◆ _end()

virtual ebmlMasterElement::_iterator* ebml::ebmlMasterElement::_end ( )

protectedpure virtual

Implemented in ebml::ebmlStruct, ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, and ebml::ebmlList.

◆ _handleParseFile()

void ebml::ebmlMasterElement::_handleParseFile ( const parseFile & parsed )

protectedvirtual

Handles the parsing of seek data for a child element.

Processes the parsed file data corresponding to a child element. Default implementation decodes child and attaches it through _addChild.

Parameters

parsed Parsed file data for a child element.

Reimplemented in ebml::ebmlLazyLoad, and ebml::ebmlLazyLoad.

◆ _init() [1/2]

void ebml::ebmlMasterElement::_init ( const parseString & parsed )

protected

Initializes the element from a parsed EBML string.

Parameters

parsed The parsed EBML string.

◆ _init() [2/2]

void ebml::ebmlMasterElement::_init ( const parseFile & parsed )

protected

Initializes the element from parsed file data.

Parameters

parsed The parsed file data.

◆ _scanChildren()

void ebml::ebmlMasterElement::_scanChildren ( parseFile::iterator & iter )

protectedvirtual

Scans for child elements from a parseFile iterator.

Default implementation iterates over the ebml::parseFile::iterator and passes each dereferenced ebml::parseFile to _handleParseFile in decoding to an ebml::ebmlMasterElement instance.

Parameters

iter	Iterator over the parseFile.

◆ begin()

ebmlMasterElement::iterator ebml::ebmlMasterElement::begin ( )

◆ cbegin()

ebmlMasterElement::const_iterator ebml::ebmlMasterElement::cbegin ( ) const

◆ cend()

ebmlMasterElement::const_iterator ebml::ebmlMasterElement::cend ( ) const

◆ dataSize()

size_t ebml::ebmlMasterElement::dataSize ( ) const

virtual

Implements ebml::ebmlElement.

Reimplemented in ebml::ebmlLazyLoad, and ebml::ebmlLazyLoad.

◆ encode() [1/5]

size_t ebml::ebmlMasterElement::encode ( char * dest ) const

◆ encode() [2/5]

std::string ebml::ebmlMasterElement::encode ( ) const

◆ encode() [3/5]

size_t ebml::ebmlMasterElement::encode ( ioBase & dest ) const

◆ encode() [4/5]

size_t ebml::ebmlMasterElement::encode	(	ioBase &	dest,
		off_t	offset
	)		const

◆ encode() [5/5]

size_t ebml::ebmlMasterElement::encode	(	char *	dest,
		const sizetree_t &	_sizetree
	)		const

Encodes the element using a precomputed size tree.

Parameters

dest	Pointer to the destination buffer.
_sizetree	A precomputed sizetree_t for the element.

Returns: The number of bytes encoded.

◆ end()

ebmlMasterElement::iterator ebml::ebmlMasterElement::end ( )

◆ make_iter() [1/2]

ebmlMasterElement::iterator ebml::ebmlMasterElement::make_iter ( _iterator * _iter )

staticprotected

◆ make_iter() [2/2]

ebmlMasterElement::const_iterator ebml::ebmlMasterElement::make_iter ( _const_iterator * _iter )

staticprotected

◆ sizetree()

sizetree_t ebml::ebmlMasterElement::sizetree ( ) const

Generates the size tree for the element hierarchy.

Returns: A sizetree_t representing the size breakdown of the element and its descendants.

Friends And Related Function Documentation

◆ childSlot_t

template<typename T >

friend class childSlot_t

friend

◆ ebmlMasterElementType

friend class ebmlMasterElementType

friend

◆ std::make_shared [1/2]

std::shared_ptr<ebmlMasterElement::_iterator> std::make_shared ( )

friend

◆ std::make_shared [2/2]

std::shared_ptr<ebmlMasterElement::_const_iterator> std::make_shared ( )

friend

◆ std::shared_ptr< ebmlMasterElement::_const_iterator >

friend class std::shared_ptr< ebmlMasterElement::_const_iterator >

friend

◆ std::shared_ptr< ebmlMasterElement::_iterator >

friend class std::shared_ptr< ebmlMasterElement::_iterator >

friend

Member Data Documentation

◆ ebmlIDCount

occur_d ebml::ebmlMasterElement::ebmlIDCount

protected

The documentation for this class was generated from the following files:

src/libebml_ng/masterelement/base/ebmlMasterElement.h
src/libebml_ng/masterelement/base/ebmlMasterElement.cpp
src/libebml_ng/masterelement/base.cpp

Classes

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ebmlMasterElement()

Member Function Documentation

◆ _addChild() [1/2]

◆ _addChild() [2/2]

◆ _attachChild()

◆ _attachChildren()

◆ _begin()

◆ _cbegin()

◆ _cdecodeChild() [1/2]

◆ _cdecodeChild() [2/2]

◆ _cdecodeChildren()

◆ _cend()

◆ _chandleParseFile()

◆ _cinit() [1/2]

◆ _cinit() [2/2]

◆ _clear()

◆ _clonedata()

◆ _cscanChildren()

◆ _decodeChild() [1/2]

◆ _decodeChild() [2/2]

◆ _decodeChildren()

◆ _detachChild()

◆ _detachChildren()

◆ _encode() [1/2]

◆ _encode() [2/2]

◆ _end()

◆ _handleParseFile()

◆ _init() [1/2]

◆ _init() [2/2]

◆ _scanChildren()

◆ begin()

◆ cbegin()

◆ cend()

◆ dataSize()

◆ encode() [1/5]

◆ encode() [2/5]

◆ encode() [3/5]

◆ encode() [4/5]

◆ encode() [5/5]

◆ end()

◆ make_iter() [1/2]

◆ make_iter() [2/2]

◆ sizetree()

Friends And Related Function Documentation

◆ childSlot_t

◆ ebmlMasterElementType

◆ std::make_shared [1/2]

◆ std::make_shared [2/2]

◆ std::shared_ptr< ebmlMasterElement::_const_iterator >

◆ std::shared_ptr< ebmlMasterElement::_iterator >

Member Data Documentation

◆ ebmlIDCount
