Abstract base class for EBML Element instances. More...

#include <ebmlElement.h>

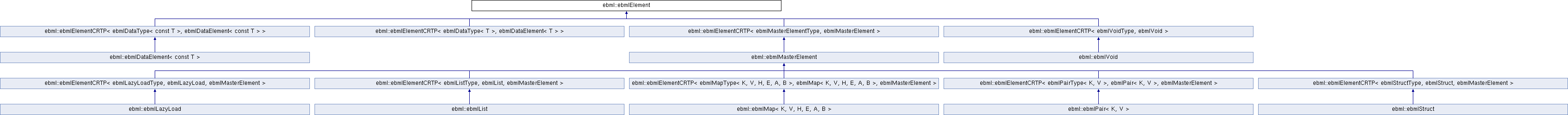

Inheritance diagram for ebml::ebmlElement:

Public Member Functions

virtual ~ebmlElement ()

virtual const ebmlElementType & cls () const

Returns a reference to the associated element class. More...

ebmlID_t ebmlID () const

Retrieve the EBML ID of the element. More...

template<typename T = ebmlElement>

T & as ()

Dynamically cast the element to the requested type. More...

template<typename T = ebmlElement>

T & as () const

Const version of the dynamic cast. More...

ebml::ptr< ebmlElement > sp ()

Returns a shared pointer to the element instance. More...

ebml::ptr< const ebmlElement > sp () const

Returns a shared pointer to a const element. More...

template<typename T >

ebml::ptr< T > sp ()

template<typename T >

ebml::ptr< T > sp () const

ebml::wptr< ebmlElement > wp ()

ebml::wptr< const ebmlElement > wp () const

template<typename T >

ebml::wptr< T > wp ()

template<typename T >

ebml::wptr< T > wp () const

bool parent_is_const () const

Check if the element's parent is a const object. More...

ebml::ptr< ebmlMasterElement > parent () const

Retrieve the parent of this element. More...

ebml::ptr< const ebmlMasterElement > c_parent () const

Retrieve a const shared pointer to the parent element. More...

ebmlElement_sp root () const

c_ebmlElement_sp c_root () const

ebmlDocument_sp document () const

bool hasParent () const

unsigned char headSize () const

unsigned char headSize (size_t) const

unsigned char sizeWidth () const

unsigned char sizeWidth (size_t) const

size_t outerSize () const

size_t outerSize (size_t) const

virtual size_t dataSize () const =0

off_t offsetInParent () const

off_t offsetInFile () const

off_t dataOffsetInParent () const

off_t dataOffsetInFile () const

ebml::ptr< ebmlElement > clone () const

virtual std::wstring minirepr () const =0

virtual std::wstring repr () const

seekData_t * makeSeekData ()

seekData_t * makeSeekData () const

Encode Functions

Provides a set of overloaded methods for encoding an EBML element.

This group of methods converts an EBML element instance into a raw byte representation according to the EBML specification.

Exceptions

ebml::ebmlEncodeError	if an internal encoding error occurs.
std::ios_base::failure	if an I/O error occurs when writing to a file or stream.

std::string encode () const

Encodes the element and returns it as a std::string. More...

size_t encode (char *) const

Encodes the element into a pre-allocated buffer. More...

size_t encode (ioBase &) const

Encodes the element and writes it to a generic I/O stream. More...

size_t encode (ioBase &, off_t) const

Encodes the element and writes it to a specific offset in a stream. More...

size_t encode (char *, size_t) const

Encodes the element using a pre-computed size. More...

Protected Member Functions
	ebmlElement (const ebmlElementType *)
	Protected constructor. More...

void	_validate ()

void	_setParent (const ebml::ptr< ebmlMasterElement > &parent, bool weak=true)

void	_setParent (const ebml::ptr< const ebmlMasterElement > &parent, bool weak=true)

void	_setParent (ebml::ptr< ebmlMasterElement > &&parent, bool weak=true)

void	_setParent (ebml::ptr< const ebmlMasterElement > &&parent, bool weak=true)

void	_setParent (ebmlMasterElement &parent, bool weak=true)

void	_setParent (const ebmlMasterElement &parent, bool weak=true)

void	_detach ()

size_t	_encode_head (char *, size_t) const

virtual size_t	_encode (char *) const =0

virtual ebmlElement *	_clone () const =0

Protected Attributes
const ebmlElementType *	_cls
	Pointer to the companion element type (an ebmlElementClass subclass). More...

wptr< ebmlElement >	_self
	Custom weak pointer to self (used for shared-from-this semantics). More...

ebmlDocument_wp	_document

vintWidth_t	_sizeWidth = 0

off_t	_offsetInParent = -1

Friends
class	ebmlDocument

class	ebmlElementType

class	ebmlMasterElement

class	ebmlLazyLoad

template<typename T >
class	ebmlDataElementClass

Detailed Description

Abstract base class for EBML Element instances.

Each EBML element instance corresponds to an entry in an EBML file or data stream. This abstract class defines the interface for encoding/decoding, cloning, accessing parent/child relationships, and obtaining size and location information.

The class also employs shared and weak pointer semantics tailored for EBML operations.

See also: EBML Element Type Definitions; ebml::ebmlElementCRTP<ebmltype_t, ebmlinst_t, instbase_t>; ebml::ebmlElementType

Constructor & Destructor Documentation

◆ ebmlElement()

ebml::ebmlElement::ebmlElement ( const ebmlElementType * cls )

protected

Protected constructor.

Parameters

cls	Pointer to the companion `ebml::ebmlElementType` instance describing this element type.

This constructor can only be called by friend classes (typically the companion element type).

◆ ~ebmlElement()

ebml::ebmlElement::~ebmlElement ( )

virtual

Member Function Documentation

◆ _clone()

virtual ebmlElement* ebml::ebmlElement::_clone ( ) const

protectedpure virtual

◆ _detach()

void ebml::ebmlElement::_detach ( )

protected

◆ _encode()

virtual size_t ebml::ebmlElement::_encode ( char * ) const

protectedpure virtual

Implemented in ebml::ebmlDataElement< const T >, ebml::ebmlMasterElement, and ebml::ebmlVoid.

◆ _encode_head()

size_t ebml::ebmlElement::_encode_head	(	char *	dest,
		size_t	dataSize
	)		const

protected

◆ _setParent() [1/6]

void ebml::ebmlElement::_setParent	(	const ebml::ptr< ebmlMasterElement > &	parent,
		bool	weak = `true`
	)

protected

◆ _setParent() [2/6]

void ebml::ebmlElement::_setParent	(	const ebml::ptr< const ebmlMasterElement > &	parent,
		bool	weak = `true`
	)

protected

◆ _setParent() [3/6]

void ebml::ebmlElement::_setParent	(	ebml::ptr< ebmlMasterElement > &&	parent,
		bool	weak = `true`
	)

protected

◆ _setParent() [4/6]

void ebml::ebmlElement::_setParent	(	ebml::ptr< const ebmlMasterElement > &&	parent,
		bool	weak = `true`
	)

protected

◆ _setParent() [5/6]

void ebml::ebmlElement::_setParent	(	ebmlMasterElement &	parent,
		bool	weak = `true`
	)

protected

◆ _setParent() [6/6]

void ebml::ebmlElement::_setParent	(	const ebmlMasterElement &	parent,
		bool	weak = `true`
	)

protected

◆ _validate()

void ebml::ebmlElement::_validate ( )

inlineprotected

◆ as() [1/2]

template<typename T >

T & ebml::ebmlElement::as ( )

inline

Dynamically cast the element to the requested type.

Template Parameters

T	The desired element type (defaults to ebmlElement).

Returns: A reference to the element cast to type T.

Exceptions

std::bad_cast if the dynamic_cast fails.

◆ as() [2/2]

template<typename T >

T & ebml::ebmlElement::as ( ) const

inline

Const version of the dynamic cast.

Template Parameters

T	The desired element type.

Returns: A reference to the element cast to type T.

Exceptions

std::bad_cast if the dynamic_cast fails.

◆ c_parent()

ebml::ptr< const ebmlMasterElement > ebml::ebmlElement::c_parent ( ) const

Retrieve a const shared pointer to the parent element.

Returns: A shared pointer to const ebmlMasterElement.

◆ c_root()

c_ebmlElement_sp ebml::ebmlElement::c_root ( ) const

◆ clone()

ebml::ptr< ebmlElement > ebml::ebmlElement::clone ( ) const

◆ cls()

const ebmlElementType & ebml::ebmlElement::cls ( ) const

virtual

Returns a reference to the associated element class.

This function typically performs a dynamic_cast to obtain a more specific subclass based on the element’s actual type.

Returns: Reference to the specific ebmlElementType.

Exceptions

std::bad_cast If the dynamic_cast fails.

◆ dataOffsetInFile()

off_t ebml::ebmlElement::dataOffsetInFile ( ) const

◆ dataOffsetInParent()

off_t ebml::ebmlElement::dataOffsetInParent ( ) const

◆ dataSize()

size_t ebml::ebmlElement::dataSize ( ) const

pure virtual

Implemented in ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlDataElement< const T >, ebml::ebmlMasterElement, and ebml::ebmlVoid.

◆ document()

ebmlDocument_sp ebml::ebmlElement::document ( ) const

◆ ebmlID()

ebmlID_t ebml::ebmlElement::ebmlID ( ) const

Retrieve the EBML ID of the element.

Returns: EBML ID as an unsigned integer.

◆ encode() [1/5]

std::string ebml::ebmlElement::encode ( ) const

inline

Encodes the element and returns it as a std::string.

◆ encode() [2/5]

size_t ebml::ebmlElement::encode ( char * dest ) const

inline

Encodes the element into a pre-allocated buffer.

◆ encode() [3/5]

size_t ebml::ebmlElement::encode ( ioBase & dest ) const

inline

Encodes the element and writes it to a generic I/O stream.

◆ encode() [4/5]

size_t ebml::ebmlElement::encode	(	ioBase &	dest,
		off_t	offset
	)		const

inline

Encodes the element and writes it to a specific offset in a stream.

◆ encode() [5/5]

size_t ebml::ebmlElement::encode	(	char *	dest,
		size_t	dataSize
	)		const

Encodes the element using a pre-computed size.

This specialized overload takes a pre-computed size as an argument, which avoids redundant dataSize() calls for master elements and their descendants, significantly improving performance for deep trees.

Parameters

dest	A pointer to the destination buffer where the encoded element will be written.
dataSize	The pre-computed size of the element's data payload.

Returns: The total size, in bytes, of the encoded element, including its header.

◆ hasParent()

bool ebml::ebmlElement::hasParent ( ) const

◆ headSize() [1/2]

unsigned char ebml::ebmlElement::headSize ( ) const

◆ headSize() [2/2]

unsigned char ebml::ebmlElement::headSize ( size_t dataSize ) const

◆ makeSeekData() [1/2]

seekData_t * ebml::ebmlElement::makeSeekData ( )

◆ makeSeekData() [2/2]

seekData_t * ebml::ebmlElement::makeSeekData ( ) const

◆ minirepr()

virtual std::wstring ebml::ebmlElement::minirepr ( ) const

pure virtual

Implemented in ebml::ebmlStruct, ebml::ebmlLazyLoad, ebml::ebmlLazyLoad, ebml::ebmlDataElement< const T >, ebml::ebmlPair< K, V >, ebml::ebmlMap< K, V, H, E, A, B >, ebml::ebmlList, and ebml::ebmlVoid.

◆ offsetInFile()

off_t ebml::ebmlElement::offsetInFile ( ) const

◆ offsetInParent()

off_t ebml::ebmlElement::offsetInParent ( ) const

inline

◆ outerSize() [1/2]

size_t ebml::ebmlElement::outerSize ( ) const

◆ outerSize() [2/2]

size_t ebml::ebmlElement::outerSize ( size_t dataSize ) const

◆ parent()

ebml::ptr< ebmlMasterElement > ebml::ebmlElement::parent ( ) const

Retrieve the parent of this element.

Returns: A shared pointer to the parent ebmlMasterElement.

Exceptions

std::runtime_error If the parent is const.

◆ parent_is_const()

bool ebml::ebmlElement::parent_is_const ( ) const

Check if the element's parent is a const object.

Returns: True if parent is a const pointer; otherwise false.

◆ repr()

std::wstring ebml::ebmlElement::repr ( ) const

virtual

Reimplemented in ebml::ebmlVoid.

◆ root()

ebmlElement_sp ebml::ebmlElement::root ( ) const

◆ sizeWidth() [1/2]

unsigned char ebml::ebmlElement::sizeWidth ( ) const

◆ sizeWidth() [2/2]

unsigned char ebml::ebmlElement::sizeWidth ( size_t dataSize ) const

◆ sp() [1/4]

ebml::ptr< ebmlElement > ebml::ebmlElement::sp ( )

Returns a shared pointer to the element instance.

Returns: The shared pointer version of this element.

◆ sp() [2/4]

ebml::ptr< const ebmlElement > ebml::ebmlElement::sp ( ) const

Returns a shared pointer to a const element.

Returns: The shared pointer (const) version of this element.

◆ sp() [3/4]

template<typename T >

ebml::ptr<T> ebml::ebmlElement::sp ( )

inline

◆ sp() [4/4]

template<typename T >

ebml::ptr<T> ebml::ebmlElement::sp ( ) const

inline

◆ wp() [1/4]

ebml::wptr< ebmlElement > ebml::ebmlElement::wp ( )

◆ wp() [2/4]

ebml::wptr< const ebmlElement > ebml::ebmlElement::wp ( ) const

◆ wp() [3/4]

template<typename T >

ebml::wptr< T > ebml::ebmlElement::wp ( )

inline

◆ wp() [4/4]

template<typename T >

ebml::wptr< T > ebml::ebmlElement::wp ( ) const

inline

Friends And Related Function Documentation

◆ ebmlDataElementClass

template<typename T >

friend class ebmlDataElementClass

friend

◆ ebmlDocument

friend class ebmlDocument

friend

◆ ebmlElementType

friend class ebmlElementType

friend

◆ ebmlLazyLoad

friend class ebmlLazyLoad

friend

◆ ebmlMasterElement

friend class ebmlMasterElement

friend

Member Data Documentation

◆ _cls

const ebmlElementType* ebml::ebmlElement::_cls

protected

Pointer to the companion element type (an ebmlElementClass subclass).

◆ _document

ebmlDocument_wp ebml::ebmlElement::_document

protected

◆ _offsetInParent

off_t ebml::ebmlElement::_offsetInParent = -1

protected

◆ _self

wptr<ebmlElement> ebml::ebmlElement::_self

protected

Custom weak pointer to self (used for shared-from-this semantics).

◆ _sizeWidth

vintWidth_t ebml::ebmlElement::_sizeWidth = 0

protected

The documentation for this class was generated from the following files:

src/libebml_ng/ebmlElement.h
src/libebml_ng/ebmlElement.cpp

Public Member Functions

Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ ebmlElement()

◆ ~ebmlElement()

Member Function Documentation

◆ _clone()

◆ _detach()

◆ _encode()

◆ _encode_head()

◆ _setParent() [1/6]

◆ _setParent() [2/6]

◆ _setParent() [3/6]

◆ _setParent() [4/6]

◆ _setParent() [5/6]

◆ _setParent() [6/6]

◆ _validate()

◆ as() [1/2]

◆ as() [2/2]

◆ c_parent()

◆ c_root()

◆ clone()

◆ cls()

◆ dataOffsetInFile()

◆ dataOffsetInParent()

◆ dataSize()

◆ document()

◆ ebmlID()

◆ encode() [1/5]

◆ encode() [2/5]

◆ encode() [3/5]

◆ encode() [4/5]

◆ encode() [5/5]

◆ hasParent()

◆ headSize() [1/2]

◆ headSize() [2/2]

◆ makeSeekData() [1/2]

◆ makeSeekData() [2/2]

◆ minirepr()

◆ offsetInFile()

◆ offsetInParent()

◆ outerSize() [1/2]

◆ outerSize() [2/2]

◆ parent()

◆ parent_is_const()

◆ repr()

◆ root()

◆ sizeWidth() [1/2]

◆ sizeWidth() [2/2]

◆ sp() [1/4]

◆ sp() [2/4]

◆ sp() [3/4]

◆ sp() [4/4]

◆ wp() [1/4]

◆ wp() [2/4]

◆ wp() [3/4]

◆ wp() [4/4]

Friends And Related Function Documentation

◆ ebmlDataElementClass

◆ ebmlDocument

◆ ebmlElementType

◆ ebmlLazyLoad

◆ ebmlMasterElement

Member Data Documentation

◆ _cls

◆ _document

◆ _offsetInParent

◆ _self

◆ _sizeWidth
